Color and Other Extensions for Graphics-Card GDP64 of RDKlein Computer

The GDP64 graphics card had enough memory (64KB) for storing four 512×256 black images. I extended the card with a simple logic which distributed 3 of the 4 images to the red, green, and blue input of a color monitor, respectively. The result was a heavily flickering 8 color high-res image. It was perfect to make screen shots (with a long shutter) of colored fractals and other things. The results were not bad for 1985 low budget standards.

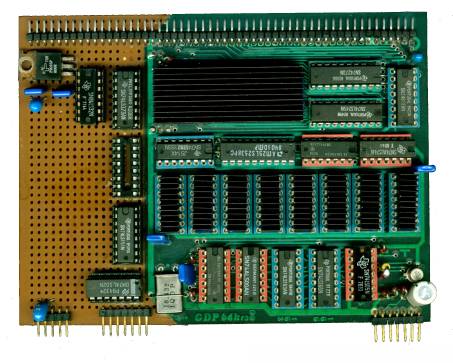

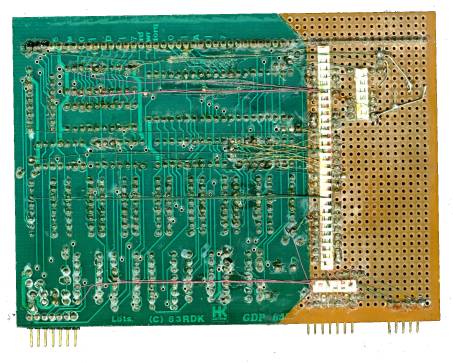

Extended GDP Front View Extended GDP Front View

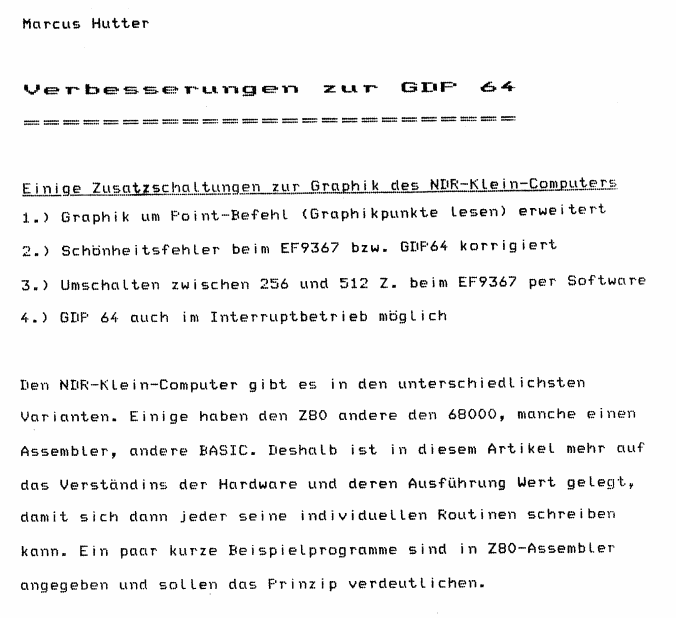

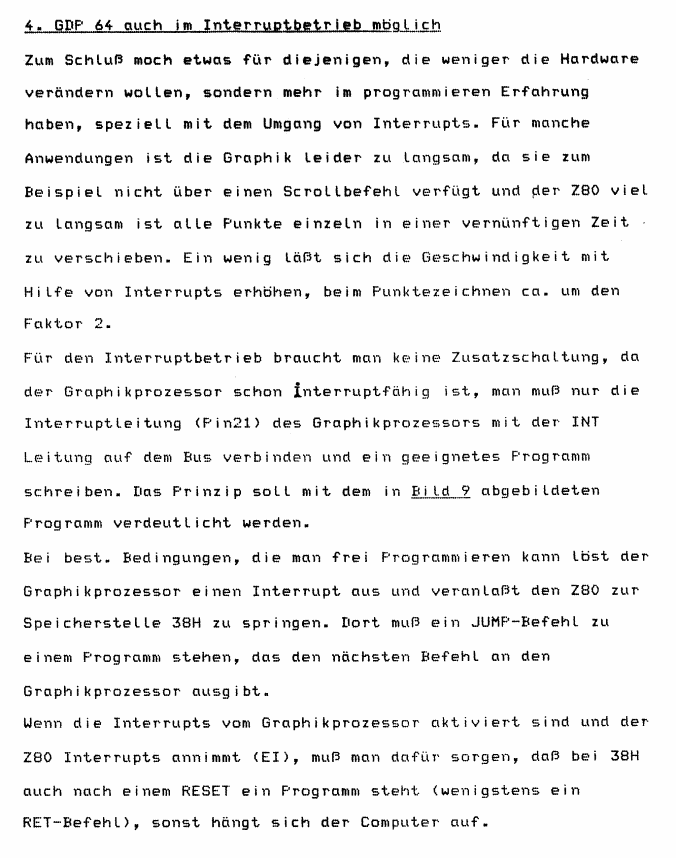

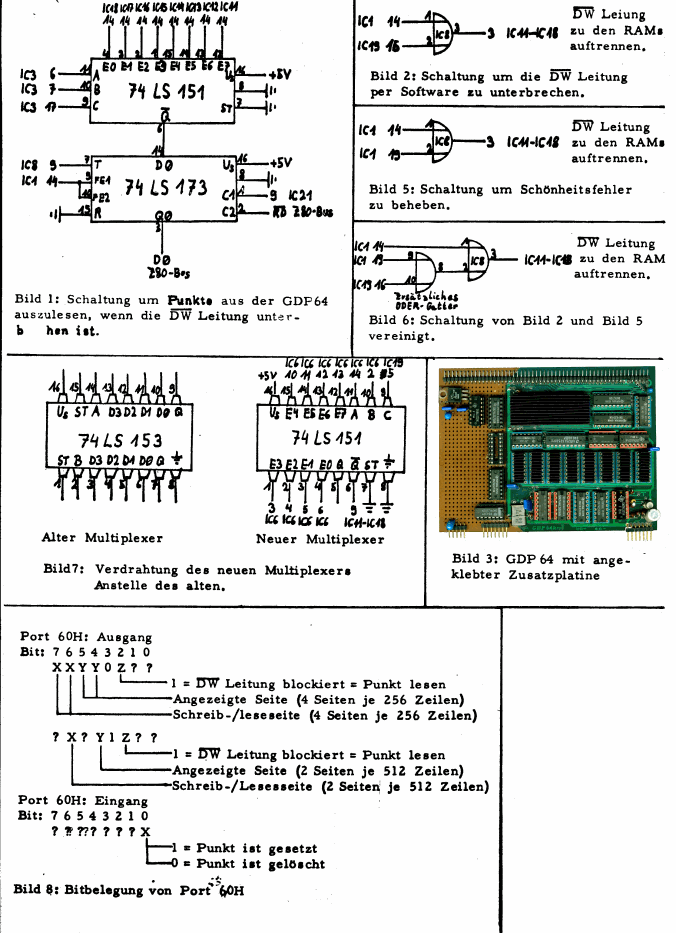

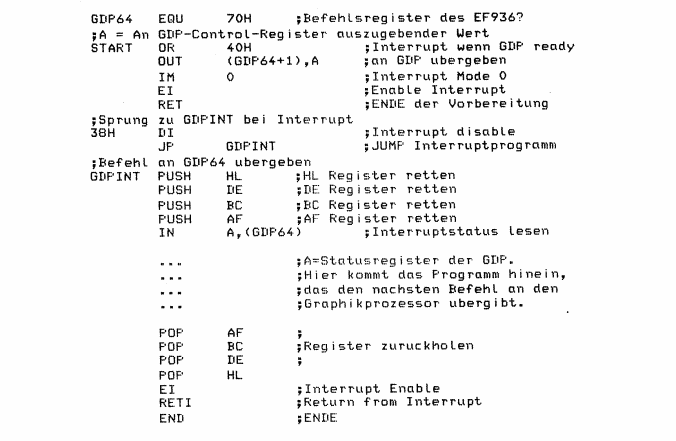

Doku of extension of GDP64 Doku of extension of GDP64 Doku of extension of GDP64 Doku of extension of GDP64 Doku of extension of GDP64 Doku of extension of GDP64
Doku of extension of GDP64
Doku of extension of GDP64
Doku of extension of GDP64
